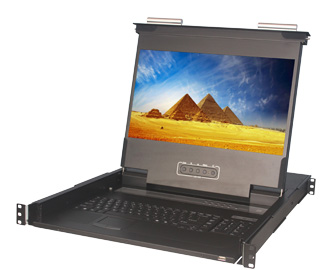

Wide Screen 17.3" High Resolution LCD KVM Features:
* 1920x1080 High Resolution
* DB15 to VGA-USB/PS2, VGA-USB(HUB)(IP optional)
* Combo CAT6 to VGA-USB, VGA-PS2, DVI-USB(IP optional)
* DVI-USB/Audio interface with USB Hub
* 40 Meters Max. distance supported Using CAT5 or CAT6 cable
* Durable 104-key keyboard and touch pad
* Self-Locking & Auto release mechanism
* Daisy chain supports up to 256 servers (except DVI)
* Port selection via push buttons or OSD (except DVI)
* Access Control List (ACL) for up to 8 independent user accounts
KVM Interface
Server
DESCRIPTION
VGA-USB
VGA-PS2
* COMBO DB15 to VGA-USB or to VGA-PS2
* 17.3" LCD High Resolution 1920 x 1080
* 1 / 8 / 16 ports Daisy Chain up to 232 Servers
* IP Remote Console (option)
VGA-USB
VGA-PS2
DVI-USB
* COMBO CAT6 to DVI-USB, to VGA-USB or to VGA-PS2
* 17.3" Resolution 1920 x 1080
* 8 / 16 / 32 ports, Daisy Chain up to 256 servers
* 40 Meters Max. distance supported Using CAT5 or CAT6 cable
* IP Remote Console (option)
DVI-USB
* DVI-USB to DVI-USB
* 17.3" High Resolution 1920 x 1080
* 8 ports DVI/USB/Audio
* USB Hub 1x Front , 2xRear USB 2.0 Type A for Peripheral USB Device
VGA-USB
* DB15 to VGA-USB
* 17.3" High Resolution 1920 x 1080
* 8 / 16 ports
* USB Hub 1x Front , 2xRear USB 2.0 Type A for Peripheral USB Device
* IP Remote Console (option)
