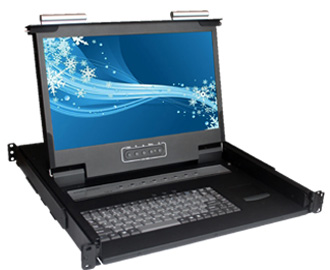

Short Depth LCD KVM Drawer:
* 15" and 17" LCD Screen Std Resolution
* 17.3" High Resolution 1920 x 1080 Resolution
* 360mm to 620mm (rack cabinet front rails to rear rails)
* Combo DB15 to VGA-USB/PS2 (IP optional)
* Durable 104-key keyboard and touch pad
* Self-Locking & Auto release mechanism
* Daisy chain expansion port supports up to 256 servers.
* Port selection via push buttons or On-Screen-Display (OSD)
* Access Control List (ACL) for up to 8 independent user accounts
KVM Interface
Server Interface
DESCRIPTION
VGA-USB
VGA-PS2
* COMBO DB15 to VGA-USB or VGA-PS2
* 15" LCD Screen 1024 x 768 Resolution
* 17" LCD Screen 1280 x 1024 Resolution
* 1 / 8 / 16 ports Daisy Chain up to 240 Servers
* IP Remote Console (option)
VGA-USB
VGA-PS2
* COMBO DB15 to VGA-USB or VGA-PS2
* 17.3" High Resolution 1920 x 1080
* 1 / 8 / 16 ports, Daisy Chain up to 240 servers
* IP Remote Console (option)
