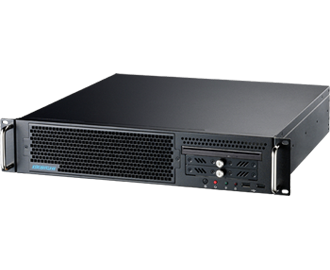

2U Rackmount micro ATX System RK2-MTX
* 19” 2U rackmount standard EIA RS-310C, 17” depth
* Industrial mATX form factor
* Intel Q87 chipset
* 1 x PCIe x 16, 1 x PCIe x 4, 2 x PCI Expansion Slots low profile
* 2 x GbE LAN, 2 x Front USB 2.0, 4 x rear USB, 2 COM ports
* 2 x Front Removable 2.5” HDD
* Long-life product
The RK2 2U rackmount system is designed for maximum expansion with space flexibility, consistency and long-life. The 19” rackmount RK2 enclosure provides PICMG 1.0, PICMG 1.3 and micor ATX form factor systems for various functionality and expansion an industrial system may require.
Compact and rugged, each of the PICMG 1.0, PICMG 1.3 and micro ATX version of RK2 provides 4 expansion slots to meet most industrial add-on applications. Three 8 cm chassis fan with washable air filter provides system with ample cooling and positive internal pressure, keeping dust and particles from entering system in most industrial environments.
PICMG 1.0 Slot board computer/backplane
Intel Q77 PCH chipset
Intel Core i7-3770 3.4GHz LGA 1155 - standard
8 GB DDR3-1333/1600 dual channel(16 GB Max.)
2 x Gb Lan, Intel I210; Intel I217LM (v-Pro support)
1 x VGA port Intel HD graphic with DX11
4-rear USB 3.0, 2-front USB 2.0
2-rear COM ports, COM3, COM4 header
3 x 32 bit PCI slot, 1 x Mini PCIe
1 TB 2.5" HD removable + 2nd HD removable tray
1 slim DVDRW drive
19” rackmount standard EIA RS-310C
* Build to order on Rackmount system is available. Contact us for further information.
